Rugged Wall P16 Building Outdoor Curved Led Video Screen For Commercial Advertising

Brand Name : BST

Model Number : BST-OCV-16

Certification : CE, RoHS, CCC, IP65

Place of Origin : Shenzhen, China

MOQ : 1 pc/ 1 sqm.

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000sq.meter / Month

Delivery Time : 10-20 days after receive payment

Packaging Details : Flight case /Fumigation-Free wooden case

Product Name : LED Display Screen

Pixel Pitch : 16mm

LED Type : SMD3535

Density : 3906dots/sqm

Module Size : 256mm X 256mm

Cabinet Size : 1024mm X 1024mm

Contact Now

Rugged Wall P16 Building Outdoor Curved Led Video Screen For Commercial Advertising

Products Description:

1. Steady performance and low death rate of light
2. Good consistency,large stock
3, Elegant structure, highly waterproof IP65 protection rating and excellent heat dissipation.
4, 15degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
5. Adopted with self developed steel structure and special kits will be kept in good flatness and smoothness.
6. More than 100,000hours life span

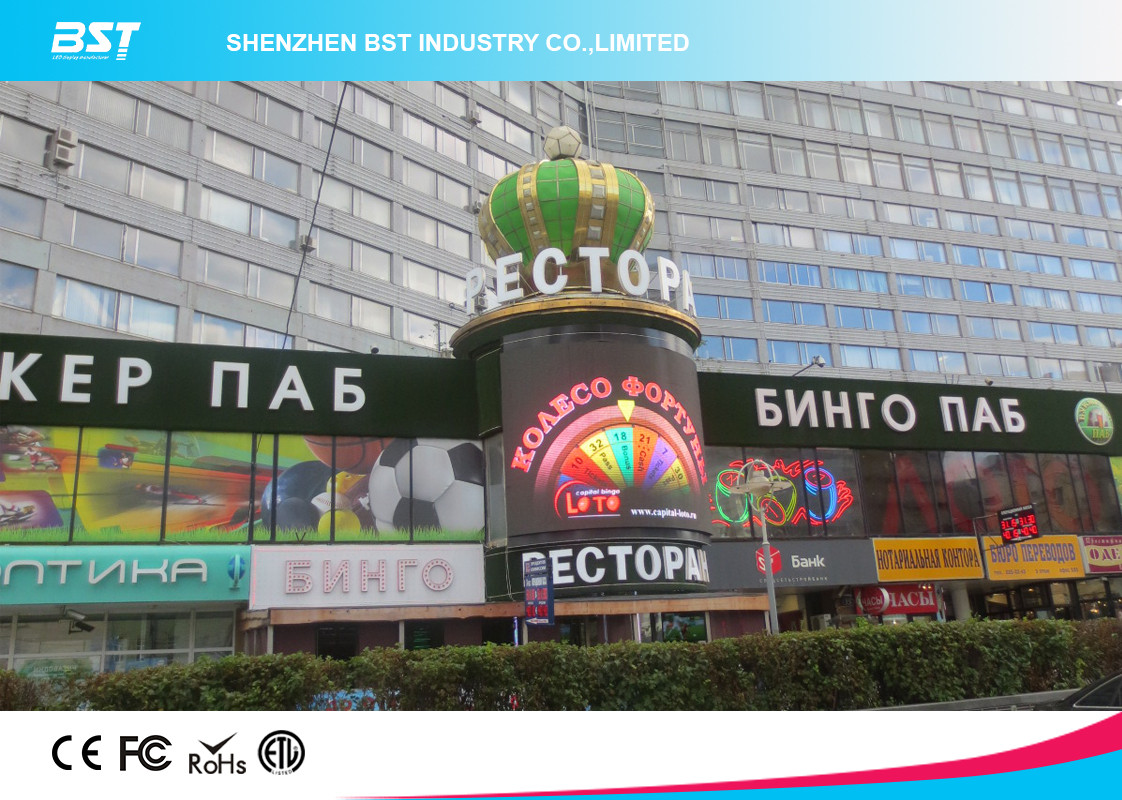

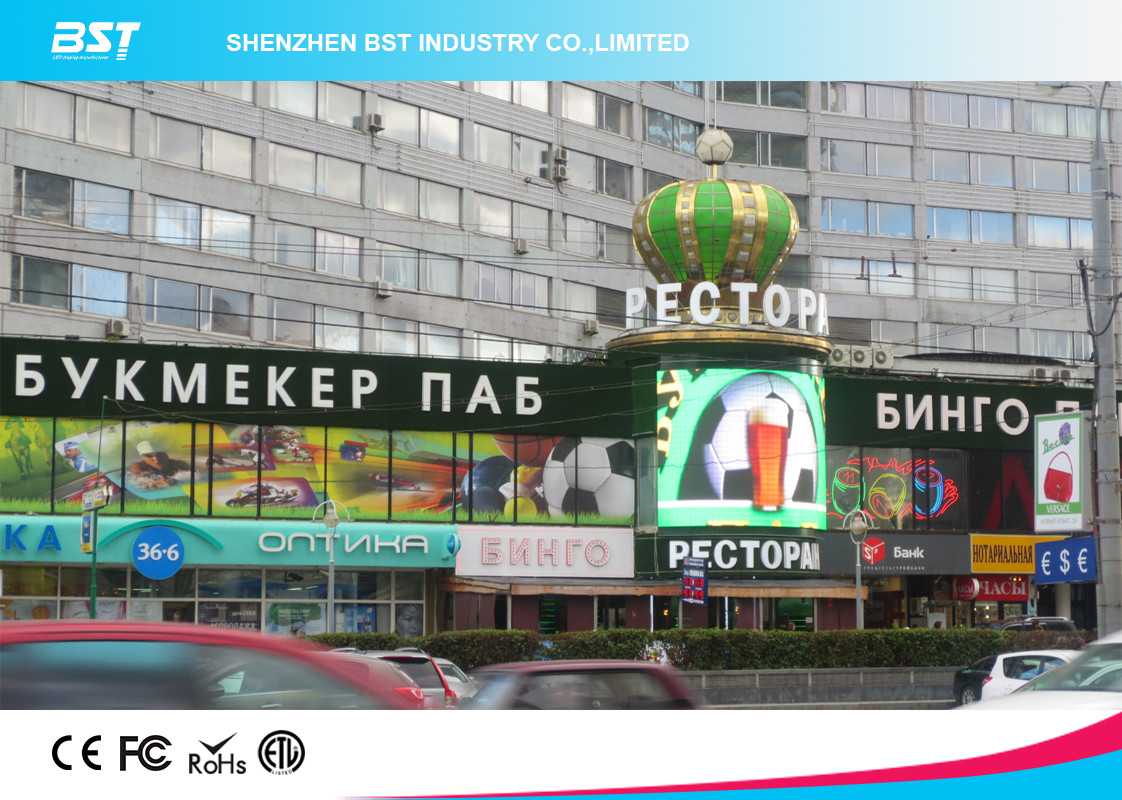

7. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
8, High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment..
9. We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
10. RGB meticulous gray level adjustment to make a abundant and exquisite colors and clear nature images

Specification

Item	Technical Specification
Pixel	Pixel pitch: 16mm
	Pixel configuration: SMD3535 1R1G1B
	Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
	Module resolution: 16×16pixels
Module	Module size: 256mmx256mm
Module	Cabinet size: 1024mm×1024mm×150mm
Cabinet	Cabinet resolution: 4096 pixels
	Cabinet material: Steel
	Gross weight: 65kg
	Module quantity: 16pcs= 4(w) x 4(h)
	Power consumption : Max.:800W/m² Everage: 300W/m²
Screen parameter	Drive method: Static drive
	Brightness: 5500cd/m²
	IC driver: MBI 5214
	Density: 3906 pixel/m²
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥ 16m
	Viewing angle: Horizontal: 140° Vertical: 140°
	Humidity(RH): ≤ 90~95%
	Working temperature: from -30°C to +60°C
	Working voltage: AC220V/110V±10%
	Refresh frequency: ≥ 1500Hz
	Frame rate: ≥ 60Hz
	Protection grade: IP65
	MTBF: More than 10000hrs
	Life time: 100,000 hrs
Control system	Control system: Linsn
	Signal interface: DVI
	Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
	Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000, WIN8)

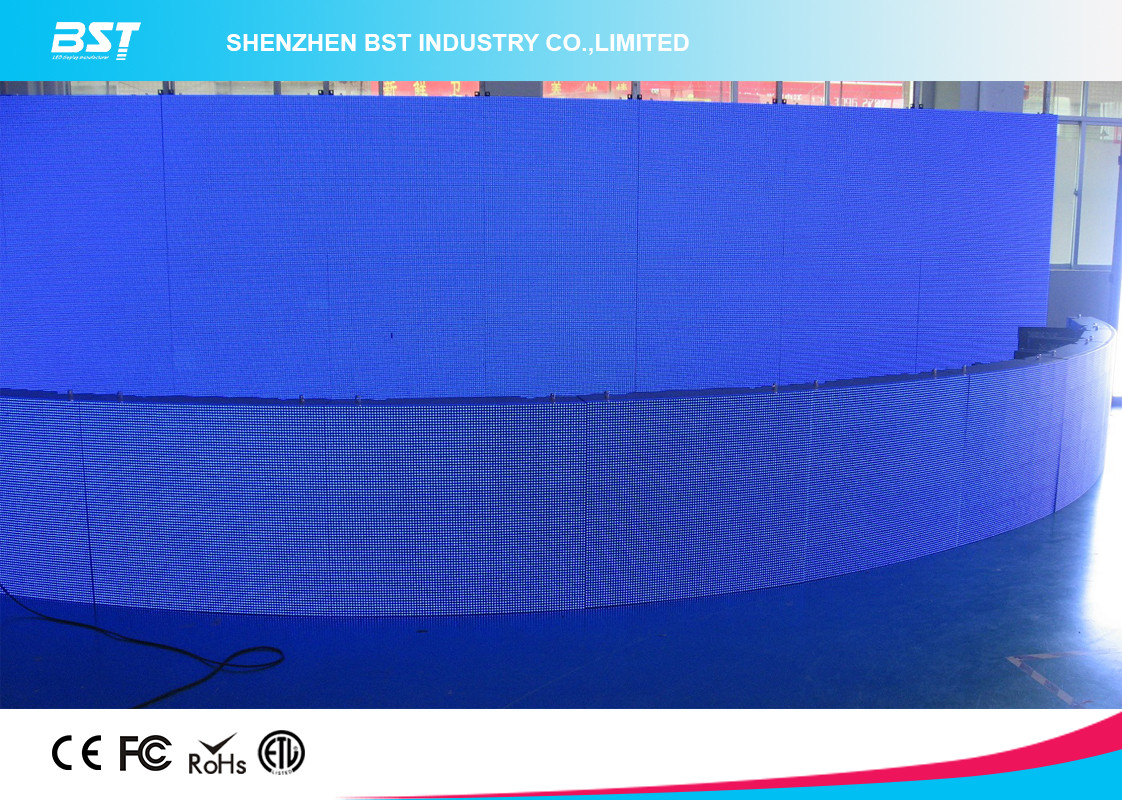

P16 curve LED display

Rugged Wall P16 Building Outdoor Curved Led Video Screen For Commercial Advertising

Controller and Accessory

Application:

Sports, animation, advertising, customs,ideo, graphics, stadiums, banks, stock exchange centers, bus station, schools, railways, airports, harbors, telecommunications, studio, exhibitions,shopping malls, etc;
Rugged Wall P16 Building Outdoor Curved Led Video Screen For Commercial Advertising

Rugged Wall P16 Building Outdoor Curved Led Video Screen For Commercial Advertising

Packing & Shippment

1, Delivery time:For LED module 1-5days,for led display and rental led cabinet 5-12days after received of deposit.All our products proceeded aging test before shipment.

2,Packing: (1)carton (2) anti-shaking wooden box (3) flight case

Rugged Wall P16 Building Outdoor Curved Led Video Screen For Commercial Advertising

Our service

1. Your inquiry related to our products or price will be replied in 24hrs

2. OEM&ODM , any your customized led display we can help you to design and put into production.

3. Distributorship are offered for your unique design and some our current models

4. Protection of your sales area, ideas of design and all your private information

5. Top quality+Reasonable price+Responsible After Service=Successful & Win

Trade Terms

1. Payment: T/T, 40% deposits before production, 60% balance to be paid before shippment

2. Freight charges are quoted under your requests

3. Shipping port: Shenzhen, China

4. Warranty time: 2years.If there is no manmade problems,we will repair for you freely.
